Test pictures generators.

This page contains the pictures as generated by the HRPT/CHRPT/HRI generators. Just a few lines of each channel is shown. The results of all channels of a certain generator are combined into 1 picture. In reality of course just 1 channel is shown.

Test pictures HRPT generator.

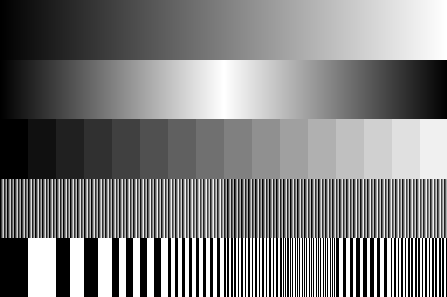

These are the 5 HRPT test pictures generated by the generator part of the decoder/generator. From top to bottom the following channels:

channelcoursevalues
10 ... 10230 0 1 1 ... 1023 1023
20 ... 1023 ... 00 1 ... 1023 1022 ... 1 0
30 ... 102316x0 16x64 ... 16x 1023
40 ... 1023 128x0 64 128 ... 1023 0 64 ... 1023 ...
50 1023 0 1023 ...pixels per bar 128, 64, ...4, 2, 1
Note: The vertical structure is not shown; in reality the picture is inverted every x lines, in which x varies between 1 and 16.

Test pictures CHRPT generator.

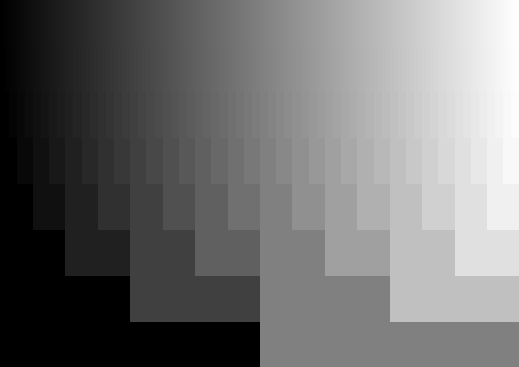

These are 8 of the 10 CHRPT test pictures generated by the generator part of the decoder/generator. From top to bottom the following channels:

channelcoursevalues
1 0 ... 1023
   2x0    2x 1 ...    2x1023
not shown
2 0 ... 1023
   4x0    4x 2 ...    4x1022
not shown
3 0 ... 1023
   8x0    8x 4 ...    8x1020

4 0 ... 1023
  16x0   16x 8 ...   16x1016

5 0 ... 1023
  32x0   32x16 ...   32x1008

6 0 ... 1023
  64x0   64x32 ...   64x 992

7 0 ... 1023
 128x0  128x64 ...  128x 960

8 0 ... 1023
 256x0 256x128 ...  256x 896

9 0 ... 1023
 512x0 512x256 ...  512x 768

100 ... 1023
1024x0             1024x 512

Test pictures PDUS generator.

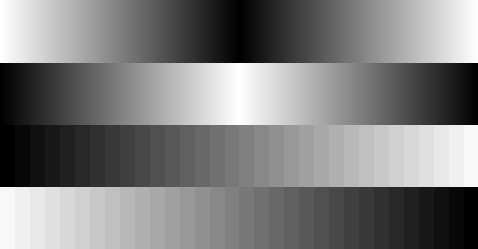

These are the 3 PDUS test pictures generated by the generator part of the decoder/generator. From top to bottom the following channels:

channelcoursevalues
VISn 1023 ... 0 ... 1023in 256 steps
VISz 0 ... 1023 ... 0in 256 steps
IR 0 ... 1023in 32 steps
WV 1023 ... 0in 32 steps

NOTE: VISn and VISz form one channel with double Y resolution.
